GBFS

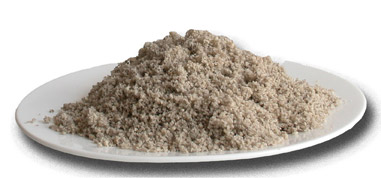

Granulated Blast Furnace Slag

Products > Cementitious Materials > Granulated Blast Furnace Slag (GBFS)

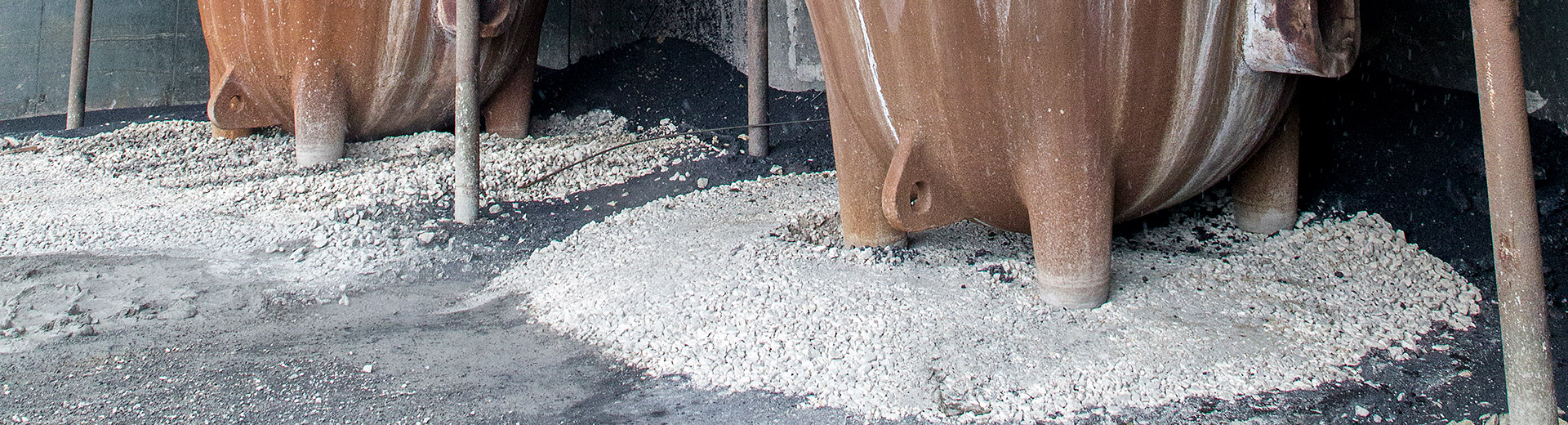

Blast-furnace slag is the nonmetallic product consisting essentially of silicates and aluminosilicates of calcium and other bases that develop in a molten condition simultaneously with iron in a blast furnace. Granulated slag is the glassy, granular material formed when molten slag is rapidly chilled. GBFS is formed when molten blast furnace slag (BFS) is rapidly quenched from the furnace, rather than left to slowly solidify by air-cooling. On casual examination, GBFS would pass for river sand, with a top size of about 6mm. It typically has a density of about 60 - 70% of natural sand.



GBFS may be used without further processing as a construction sand, soil/pavement stabilising media or grit-blasting material. Slags are classified into three grades (80, 100, and 120) based on their respective mortar strengths when blended with an equal mass of Portland cement (ASTM C989).



Renelux supplies the cement industry with GBFS & GGBFS which are mainly sourced from India and Microfine GGBS (Substitute to micro silica), a new generation supplementary cementitious material, that is sourced from India.






Applications

As a general purpose construction sand in civil engineering applications
As an ideal select fill behind reinforced earth wall construction. Within a relatively short time, the pozzolanic properties of granulate cause it to set and form a solid block
As a source of alumina and silica in glass manufacture
As a stabilising agent in road construction. There have also been examples where only granulate has been used as pavement material. Pavements now exist where granulate has been used in conjunction with steel slag to form very heavy-duty pavements.
As a grit-blasting medium: granulate is particularly suitable for soft metals such as aluminium where a light etch is required




Origins











CHTS-01 China Origin GBFS



Product & Specs



CaO (%): 39 Min
SiO2 (%): 37 Max
Al2 O3(%): 14 Max
MnO (%): 1.5 Max
MgO (%): 10 Max
FeO (%): 1.5 Max
TiO2 (%): 1.5 Max
SO3(%): 2.0 Max
Cl （%): 0.1 Max
Glass (%): 95 Min
Moisture (%): 10 Max
LOI (%): 1 Max








Delivery & Logistics



Terms of delivery
- FOB Bayuquan Port or Panjin Port, China
- CFR/CIF to Any Safe World Port

Port(s) of loading
Bayuquan Port, China (Draft 15.5m, Loading rate 15000MT PWWD SSHINC)
Panjin Port, China (draft 12.7m, Loading rate 15000MT PWWD SSHINC)

Packaging options
In loose bulk and in jumbo bags









CHTS-02 China Origin GBFS



Product & Specs



CaO (%): 39 Min
SiO2 (%): 37 Max
Al2 O3(%): 14 Max
MnO (%): 1.5 Max
MgO (%): 10 Max
FeO (%): 1.5 Max
TiO2 (%): 1.5 Max
SO3(%): 2.0 Max
Cl （%): 0.1 Max
Glass (%): 95 Min
Moisture (%): 10 Max
LOI (%): 1 Max







Delivery & Logistics



Terms of delivery
- FOB Dandong Port, China
- CFR/CIF to Any Safe World Port

Port(s) of loading
Dandong Port, China (Draft 12.8m, Loading rate 15000MT PWWD SSHINC)

Packaging options
In loose bulk and in jumbo bags









CHTS-03 China Origin GBFS



Product & Specs



CaO (%): 36 Min
SiO2 (%): 37 Max
Al2 O3(%): 18 Max
MnO (%): 1.5 Max
MgO (%): 12 Max
FeO (%): 1.5 Max
TiO2 (%): 1.5 Max
S (Sulfur): 1.5 Max
Cl （%): 0.1 Max
Glass (%): 95 Min
Moisture (%): 10 Max
LOI (%): 1 Max
SO3(%): 2.5 Max
Insoluble Residue as IR (%): 1.5 Max
Granulometry <= 10mm (%): 95 Min





Delivery & Logistics



Terms of delivery
- FOB Caofeidian Port, China
- CFR/CIF to Any Safe World Port

Port(s) of loading
Caofeidian Port, China (Draft 18.8m, Loading rate 18000MT PWWD SSHINC)

Packaging options
In loose bulk and in jumbo bags









INCE-01 Indian Origin GBFS



Product & Specs



SiO2 (%): 32.00 - 38.00%
Al2 O3(%): 14.00 - 18.00%
CaO (%): 32.00 - 38.00%
MgO (%): 3.00 - 7.00%
Fe2O3 (%): 0.70 - 1.50%
MnO (%): 0.01 - 0.50%
Chloride: 0.02 - 0.07%
Alkalis: 1.00 - 2.00%
Sulphide Sulphur: 0.20 - 0.50%
Insoluble residue: 0.50 - 1.50%
Loss on Ignition: 0.50 - 0.80%
Glass content: 87 - 92%







Delivery & Logistics



Terms of delivery
- FOB Mundra Port, India
- CFR/CIF to Any Safe World Port

Port(s) of loading
Mundra Port, India


Packaging options
In loose bulk and in jumbo bags






Packaging Options


Bulk in 1.5MT-2MT Jumbo Bags
(Dry Bulk and Containerized Cargoes)

Loose bulk
(Dry Bulk Cargoes)
